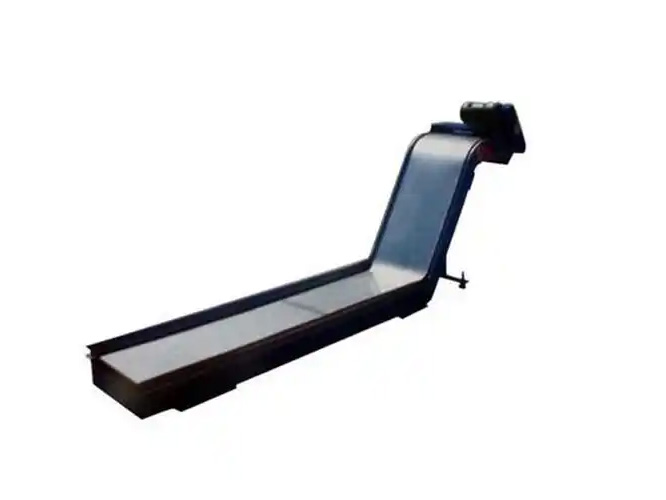

The Magnetic Chip Conveyor Utilizes The Strong Magnetic Field Generated By Permanent Magnet Materials To Adsorb Chips Onto The Working Magnetic Plate Of The Chip Conveyor, Or To Separate Particles, Powders, And Iron Chips With A Length Of ≤ 150 Millimeters From Oil Or Emulsion, And Transport Them To Designated Chip Disposal Locations Or Collection Boxes. It Can Handle Iron Shavings And Non Rolled Shavings In Powder, Particle, And Length Less Than 100 Millimeters, Or Separate Shavings From Oil And Emulsion And Transport Them To Designated Chip Removal Boxes.
Magnetic Chip Conveyor Utilizes The Movement Of Magnets To Transfer Chips Onto Each Magnet, Achieving The Goal Of Conveying Chips. Suitable For Conveying Powdered Chips In Wet Machining, Not Suitable For Discharging Chips And Cutting Fluids Containing A Lot Of Oil Stains.
Be Careful:
Due To The Influence Of The Inherent Characteristics Of Magnetic Materials, This Series Of Machines Should Not Be Used In Working Environments With Temperatures Higher Than 80 Degrees, As It May Affect The Working Effect Due To The Attenuation Of Magnetic Field Strength.
Due To The Rotating Motion Of Magnetic Materials Inside The Machine, The Gap Between Them And The Working Panel Is Small, So It Is Strictly Prohibited For Foreign Objects To Collide Or Squeeze On The Working Panel.
In A Wet Environment, If The Machine Does Not Work For A Long Time, The Liquid Phase Should Be Cleaned And Kept Clean.
Designed For Short Coil Shavings, Suitable For Metal Iron Shavings, Fine Iron Shavings, And Casting Iron Shavings. It Can Be Widely Used In Machining Centers, Combination Machine Tools, Milling Machines, Drilling Machines, Lathes, Automatic Lathes, Gear Machining Machines And Other Mechanical Processing Equipment And Automatic Lines For Iron Chip Transportation And Iron Chip Treatment In Wet Machining Coolant, Thereby Purifying The Coolant. It Can Also Be Used As A Conveyor And Elevator For Magnetic Small Parts, And Is An Ideal Supporting Equipment In The Modern Mechanical Processing Industry.
1. Quantitative Chip Removal Without Generating Overload.
2. Reliable Work, Smooth Operation, Low Noise, And Long Lifespan.

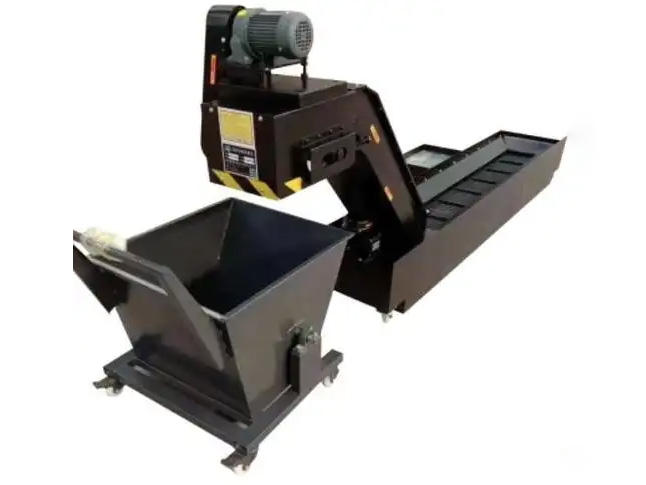

3. Adopting An Automatic Tensioning Mechanism To Automatically Adjust The Tightness Of The Entire Chain. This Product Is Divided Into Two Structures: Magnetic Plate And Magnetic Roller, Designed According To Customer Requirements.
