The Chip Conveyor Is Mainly Used To Collect Various Metal And Non-metal Waste Generated By The Machine And Transfer The Waste To The Collection Vehicle. Can Be Used In Conjunction With A Filtered Water Tank To Recycle Various Types Of Coolant. There Are Scraper Type Chip Conveyors, Chain Plate Type Chip Conveyors, Magnetic Chip Conveyors, And Spiral Type Chip Conveyors.

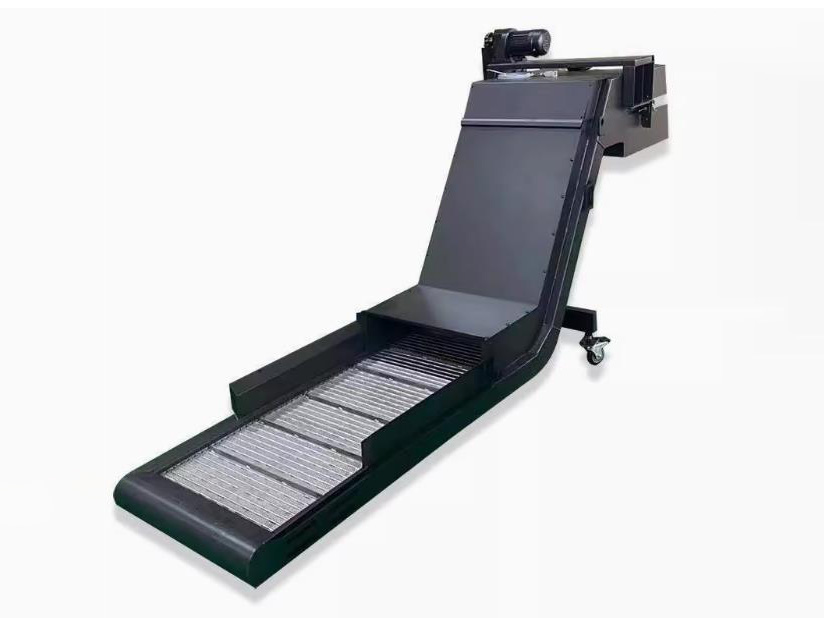

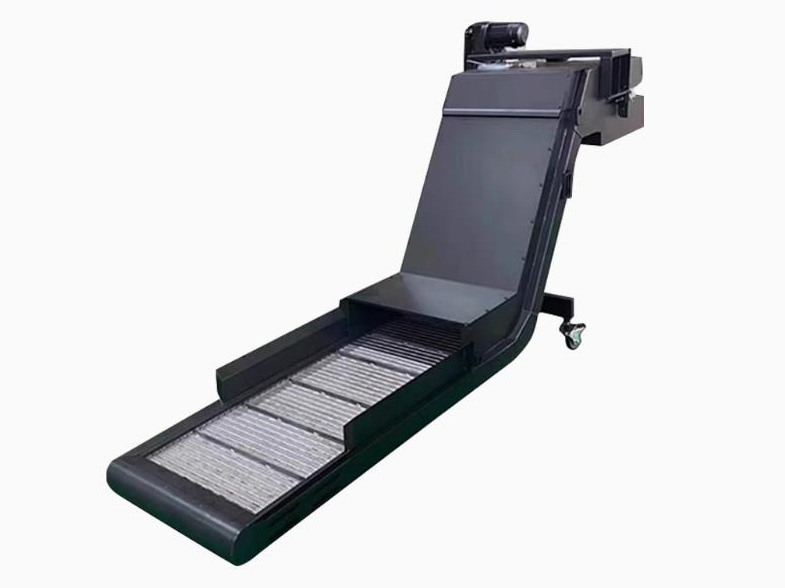

Machine Tool Chip Conveyor, Small In Size And High In Efficiency; The Most Suitable Matching Model For CNC, NC, And Industrial Machinery. The Diversified Width Of The Chain Plate Provides Excellent Matching Elasticity And Effective Application. The Integrated Chain Plate Combination Has High Strength, Precise Coordination, Stable And Quiet Movement. The Tight Convex Design Can Effectively Prevent Debris From Adhering And Increase The Ability To Remove Debris. Torque Limit Setting Effectively Reduces Damage Caused By Improper Operation.
It Is Mainly Used To Collect And Transport Various Roll Shaped, Ball Shaped, Block Shaped Chips, As Well As Copper Chips, Aluminum Chips, Stainless Steel Chips, Carbon Blocks, Nylon And Other Materials That Cannot Be Solved By Magnetic Chip Conveyors. It Is Widely Used In Various CNC Machining Center Combination Machines And Flexible Production Lines, And Can Also Be Used As A Conveying Device For Small Parts Of Punching And Cold Rolling Machine Tools. It Is Applied In Hygiene And Food Production Conveying To Improve The Operating Environment, Reduce Labor Intensity, And Improve The Automation Level Of The Whole Machine. Chain Plates Can Be Made Into Stainless Steel And Cold-rolled Plates According To User Requirements.
The Magnetic Roller Chip Conveyor Utilizes The Rotation Of Magnetic Rollers To Transfer Chips Step By Step Between Each Roller, In Order To Achieve The Purpose Of Conveying Chips. This Machine Is Developed Based On A Magnetic Chip Conveyor. It Compensates For The Performance And Structural Deficiencies Of Magnetic Chip Conveyors In Certain Aspects Of Use. Suitable For Conveying Powdered Chips In Wet Machining, And More Suitable For Chip Removal When Chips And Cutting Fluids Contain A Lot Of Oil Stains.
Be Careful; Due To The Influence Of The Inherent Characteristics Of Magnetic Materials, This Series Of Machines Should Not Be Used In Working Environments With Temperatures Higher Than 80 Degrees, As It May Affect The Working Effect Due To The Attenuation Of Magnetic Field Strength.
Due To The Rotating Motion Of Magnetic Materials Inside The Machine, The Gap Between Them And The Working Panel Is Small, So It Is Strictly Prohibited For Foreign Objects To Collide Or Squeeze On The Working Panel.
In A Wet Environment, If The Machine Does Not Work For A Long Time, The Liquid Phase Should Be Cleaned, Kept Clean, And The Chip Conveyor Should Be Used.
The Scraper Chip Removal Device Has A Wide Range Of Conveying Speeds, High Work Efficiency, And Diverse Effective Chip Removal Widths, Providing Sufficient Selection Range, Such As CNC Machine Tools, Machining Centers, Grinders, And Automatic Lines. The Effect Of Handling Metal Sand And Abrasive Particles In Grinding Processing, As Well As Aluminum Shavings In The Automotive Industry, Is Relatively Good. Special Chains Are Installed On Both Sides Of The Scraper, And The Height And Distribution Spacing Of The Scraper Plate Can Be Randomly Designed, Resulting In Smooth Transmission, Compact Structure, And Good Strength. And A Comprehensive Filtration System Can Be Formed By Adding Steel Mesh Backwash, Scraper, Vortex Separator, Oil-water Separator, Etc. According To User Needs To Improve Product Surface Processing Accuracy, Save Coolant, And Reduce Worker Labor Intensity. It Is A Widely Used Machine Tool Auxiliary Device.
This Device Drives A Rotating Shaft With Spiral Blades Through A Reducer To Push The Material Forward (backward), Concentrate It At The Discharge Port, And Drop It Into The Designated Position. The Machine Has A Compact Structure, Occupies A Small Space, Is Easy To Install And Use, Has Few Transmission Links, And Has An Extremely Low Failure Rate. It Is Especially Suitable For Machine Tools With Narrow Chip Removal Spaces And Other Chip Removal Forms That Are Difficult To Install.
There Are Mainly Four Forms: 1. There Is A Rotating Shaft And A Chip Collection Groove; 2. There Is A Rotating Shaft And No Chip Collection Groove; 3. No Rotation Axis, With Chip Collection Groove; 4. No Core, No Chip Collection Groove, And Can Be Combined With Other Chip Removal Devices For Use
The Chip Collection Vehicle Is Used To Collect Various Chips Conveyed From The Machine Tool By Various Chip Conveyors. The Bottom Is Equipped With Wheels, Which Can Send The Chips Out Of The Work Site For Centralized Cleaning. It Is Divided Into Dry And Wet Types. The Dry Material Box Can Be Tilted To Pour Out The Chips, While The Wet Type Is Based On The Dry Foundation With Double-layer Filters And Oil Discharge Valves To Facilitate The Separation Of Coolant And Chips In The Chips, Playing A Role In Recycling And Environmental Protection. Various Chip Collection Vehicles With Different Volumes And Functions Can Be Designed According To Different Chip Discharge Volumes And User Requirements.
