Steel Aluminium Tow

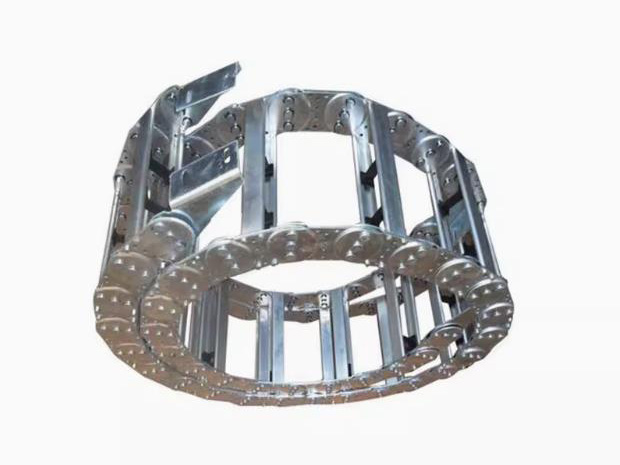

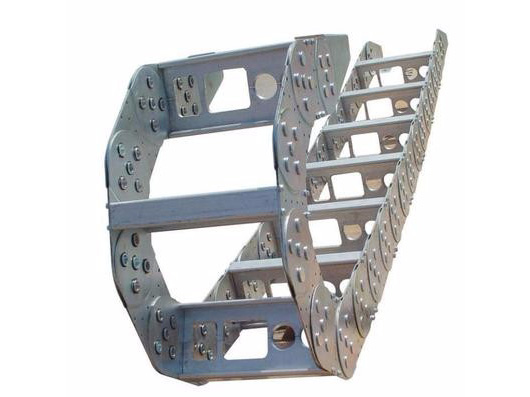

Steel Aluminum Drag Chain Is A Cable Protection Device Used For Mechanical Equipment, Mainly For The Traction And Protection Of Cables, Oil Pipes, Gas Pipes, Water Pipes, Etc. Of Machine Tools, Mechanical Arms, Lifting Equipment And Other Equipment.

The Main Body Of The Steel Aluminum Drag Chain Is Composed Of A Chain Plate (made Of High-quality Steel Plate Quenched And Polished With Chrome Plating/galvanizing/spray Coating Treatment), A Support Plate (extruded Aluminum Alloy), A Shaft Pin (alloy Steel) And Other Components. This Ensures That There Is No Twisting Or Deformation Between The Cable Or Rubber Tube And The Drag Chain. The Chain Plate, Treated With Chrome Plating, Has A Novel Appearance, Reasonable Structure, High Flexibility And Strength. This Product Has Good Rigidity, No Deformation, Easy Installation, Reliable Use, Easy Disassembly And Assembly, And Does Not Sag. Due To Its Exquisite Appearance, It Can Greatly Enhance The Overall Artistic And Aesthetic Effect Of The Machine Tool Equipment And Enhance The Competitiveness Of China's Machinery And Equipment In The International Market.

Specifications:

• There Are TL45, TL65, TL95, TL125, TL180, TL225, And TL250 Models Available. The Drag Chain Width Can Be Customized According To User Requirements, And The Bending Radius Ranges From 50-800.

• There Are Three Forms Of Support Plates.

• (1) When The Drag Chain Needs To Bear Large Pipe And Cable Loads, High-strength Support Plates - Integral Type Should Be Selected

• (2) When The Size Of The Pipe Joint Of The Cable Is Larger Than The Inner Hole Diameter Of The Support Plate Or Requires Frequent Disassembly, Maintenance, Etc. Optional Support Plate - Separate Type

• (3) When There Are Many Specifications And Varieties Of Cable Installation, A Support Plate Frame Type Can Be Selected

Parameters:

• The Materials Of Steel Aluminum Drag Chains Are Cold-rolled Steel And Stainless Steel. The Model Of The Drag Chain, The Total Width Of The Drag Chain, The Length Of The Drag Chain, The Type Of Support Plate, The Size Of The Built-in Holes In The Support Plate, And The Bending Radius Of The Drag Chain.

Product Features:

• Suitable For All Transmission Modes, Can Be Extended Or Shortened Freely. The TLG Steel Drag Chain Can Carry A Large Number Of Heavy Cables And Oil Pipes, With A Large Free Suspension Length. The Support Plate Can Be Made According To Customer Needs And Is Used In Work Machines, Mobile Machinery, Etc. In Addition, The Bending Radius Can Be Changed By Changing The Pin Axis.
