Steel Drag Chain

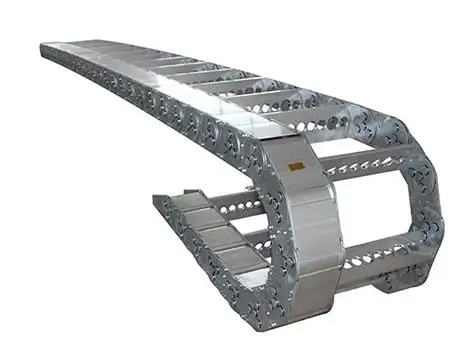

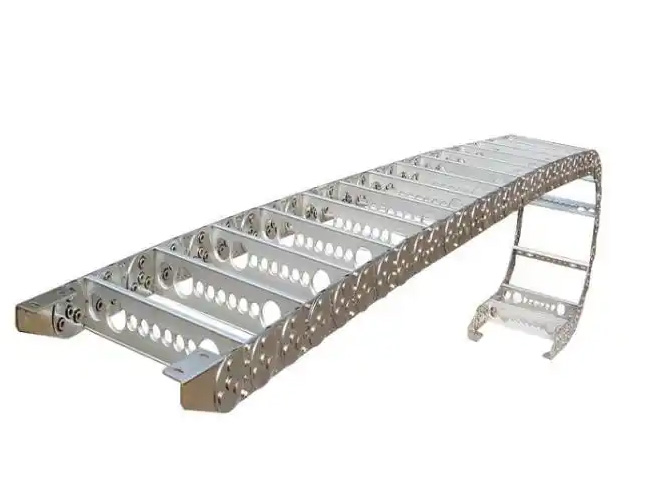

Steel Drag Chains Are A Type Of Cable Protection Product, Which Can Be Divided Into Three Types Based On The Usage Environment And Requirements: Bridge Type Steel Tank Chains, Fully Enclosed Steel Tank Chains, And Semi Enclosed Steel Tank Chains.

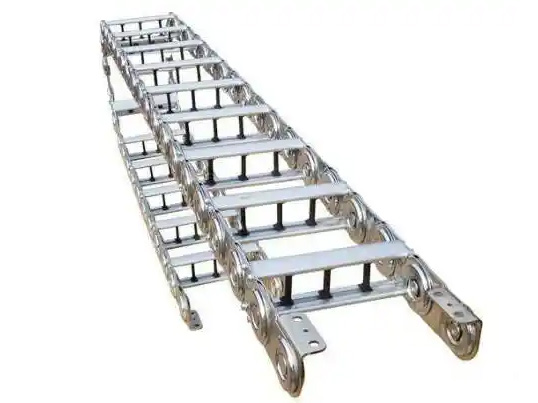

The Main Body Of The TL Series Steel Tank Chain Is Composed Of A Chain Plate (high-quality Steel Plate Chrome Plated), A Support Plate (extruded Aluminum Alloy), A Shaft Pin (alloy Steel) And Other Components, Which Prevent Relative Movement And Distortion Deformation Between The Cable Or Rubber Tube And The Drag Chain. The Chain Plate Is Chrome Plated, With A New And Reasonable Structure, High Flexibility And Strength, Good Rigidity, Easy Installation, Reliable Use, And Easy Disassembly. Especially, High-strength Wear-resistant Materials Are Used, And Alloy Copper Is Used As The Shaft Pin, Which Improves The Product's Wear Resistance, Makes Bending More Flexible, Reduces Resistance, Reduces Noise, And Ensures Long-term Use Without Deformation Or Sagging.

1. The Drag Chain Can Adapt To A Maximum Moving Speed Of 40 Meters Per Minute.

At Maximum Moving Speed, The Sound Pressure Level Of The Drag Chain Should Not Exceed 68 Decibels.

3. The Safe Service Life Of The Drag Chain Shall Not Be Less Than 1 Million Times (reciprocating).

Specification For Steel Tank Chain

Steel Tank Chains Can Be Divided Into TL Type Steel Tank Chains And TLG Type Steel Tank Chains According To Their Structure. Steel Tank Chains Are Classified By Pitch Into 45, 65, 75, 95, 100, 125, 180, 225, And 250 Types. The Width Of The Drag Chain Can Be Customized According To User Requirements, With A Bending Radius Ranging From 50-800. There Are Three Forms Of Support Plates. (1) When The Drag Chain Needs To Bear A Large Load Of Pipes And Cables, A High-strength Support Plate - Integral Type (2) Should Be Selected. When The Pipe Joint Size Of The Pipe Cable Is Larger Than The Inner Hole Diameter Of The Support Plate Or Requires Frequent Disassembly, Maintenance, Etc. When There Are Many Specifications And Varieties For Installing Cable Ducts, A Support Plate Frame Type Can Be Selected.

The Main Body Of The TL45 Steel Tank Chain Is Composed Of Chain Plates (high-quality Steel Plate Chrome Plated), Support Plates (extruded Aluminum Alloy), Shaft Pins (alloy Steel) And Other Components, Which Prevent Relative Movement And Distortion Between The Cable Or Rubber Tube And The Drag Chain. The Chain Plate Has A New Appearance After Chrome Plating Treatment, With A Reasonable Structure, High Flexibility And Strength, No Deformation Of Steel, Easy Installation, Reliable Use, And Easy Disassembly. Especially, This Product Uses High-strength Wear-resistant Materials, Alloy Copper As The Shaft Pin, Which Improves The Wear Resistance Strength Of The Product, Makes Bending More Flexible, Has Less Resistance, Reduces Noise, And Can Ensure Long-term Use Without Deformation Or Sagging.

Several Points Must Be Noted When Using Steel Tank Chains:

The TLG And TL Steel Tank Chains Have A Maximum Travel Of 40 Meters And Are Suitable For All Transmission Modes. Can Be Extended Or Shortened At Will. In Addition, The Bending Radius Can Be Changed By Changing The Pin Axis. The Bending Radius Should Be Selected According To The Maximum Diameter Of The Cable And Should Reach 10 Times The Diameter Of The Cable. For Smaller Strokes, A Smaller Radius Can Be Selected Accordingly

The Width Of The Support Plate For The Steel Tank Chain Is 150mm To 800mm, And The Spacing Between Holes Is 10mm. The Height Of The Chain Plate, Which Is Also The Height Of The Support Plate, Is Determined By The Maximum Diameter Of The Cable

When The Machine Tool Is Operating At Maximum Capacity, If The Width Of The Steel Drag Chain Exceeds 300mm And The Length Of The Drag Chain Exceeds 4m, For Stability Reasons, It Should Be Considered To Choose A Drag Chain With An Increased Size Of One Size.
