Steel Plate Protective Cover

Steel Plate Protective Cover Is A Cover With Good Sealing, Which Can Prevent Iron Filings, Coolant, And Accidental Accidents Of Tools.

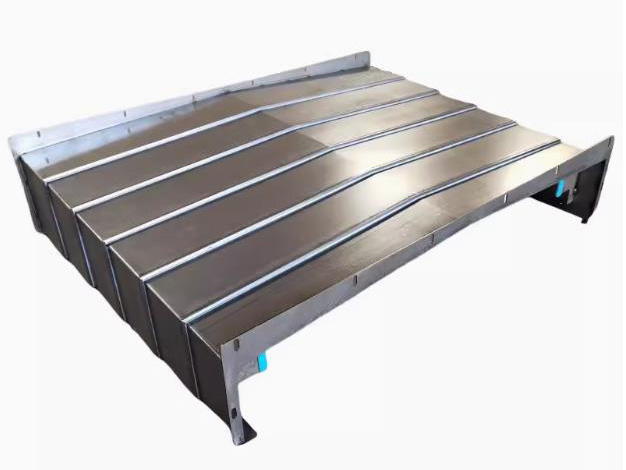

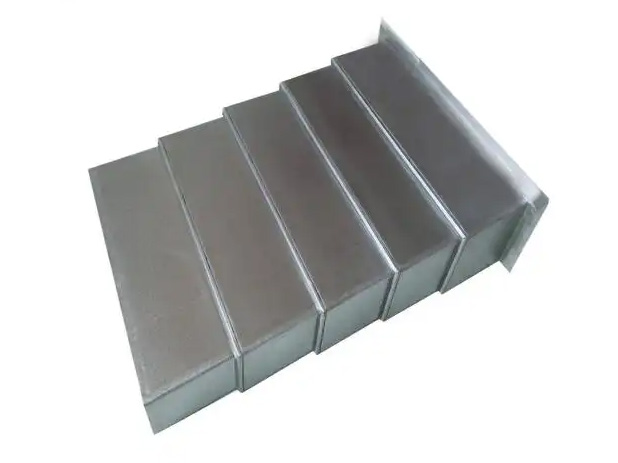

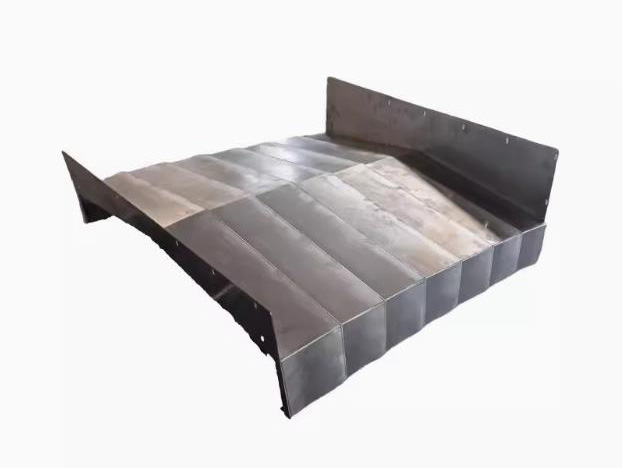

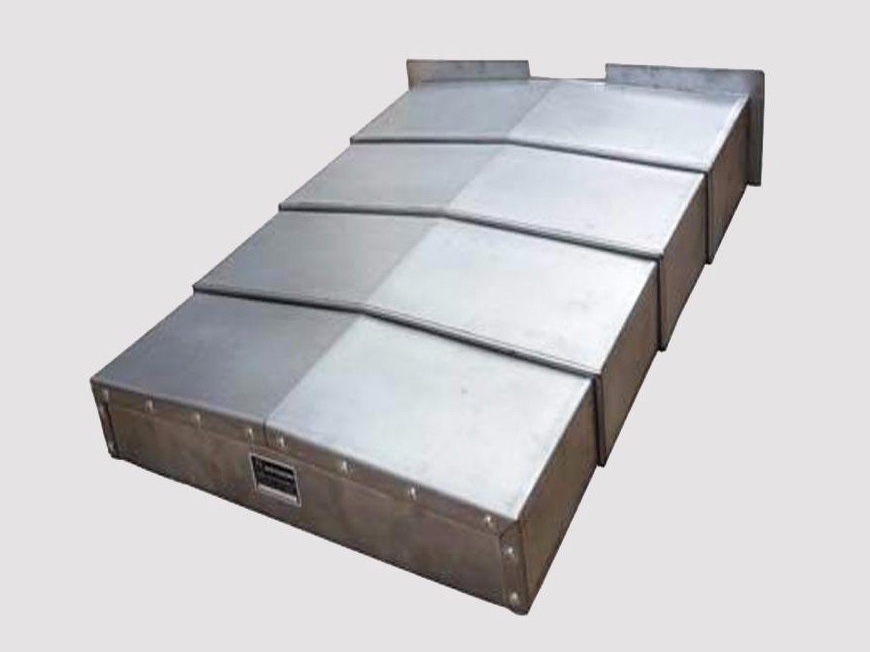

The Reasonably Priced Standard Structure (1) Is Suitable For Most Application Industries, With A Width Of Up To 900mm. When The Width Is Large, It Must Be Folded To Improve Lateral Stability. This Can Be Achieved With The Ridge Type (3) And The Folded Edge (4). In Addition, The Inclined Type (2) Can Effectively Make Liquids And Debris Flow Away.

1. Durable, Smooth Operation, Low Noise, And Beautiful Appearance.

2. The Steel Plate Protective Cover Is Suitable For High-speed Machine Tool Guide Rail Protection, Which Is Both Stable And Free Of Vibration Noise.

3. The Steel Plate Protective Cover Device Not Only Protects The Service Life Of The Protective Plate, But More Importantly, Ensures The Precision Of The Machine Tool.

4. Each Section Of The Steel Plate Protective Cover Is Simultaneously Pulled Apart And Retracted In Parallel, Allowing For Smooth Operation.

5. The Steel Plate Protective Cover Will Not Cause The Protective Plate To Detach Or Make Impact Sounds, Which Is Both Aesthetically Pleasing And Improves The Service Life Of The Protective Plate.

On The Basis Of The Original Sealing Strip, A Layer Of Stainless Steel Cover Plate Was Added To Prevent Iron Filings From Burning The Sealing Strip At High Temperatures And Damaging The Guide Rail By Rubbing It Into The Track Surface.

Advantages Of Steel Plate Protective Cover Device:

1. Each Piece Of The Protective Cover Can Be Operated Simultaneously, Which Is Completely Different From The Usual One Piece Pull Type Of Protective Cover, So The Noise Is Extremely Low.

2. The Use Of A Protective Cover For The Device Can Increase Its Service Life.

3. The Steel Plate Protective Cover Device Can Increase The Movement Speed Of The Cover To 120m/min And Withstand Higher G Values (2G).

4. The Steel Plate Protective Cover Device Ensures That The Cover Moves In The Same Direction And Is Parallel (avoiding The Disadvantage Of Snake Movement In General Shear Type Protective Covers).

5. It Can Be Smoother At High Speeds Without Any Vibration.
