During The Use Of The Screw Conveyor, It Is Important To Pay Attention To Daily Maintenance And Upkeep In Order To Maximize Its Compatibility With The Sand Dryer, Ensure Production Volume And Efficiency, And Extend The Service Life Of The Equipment.
(1) Lubricating Oil Should Be Added To Transmission Components Such As Bearings, Gears, And Chains At Regular Intervals.
(2) After The Box Conveyor Is Stopped, The Wear Of The Spiral Blades Should Be Checked, And If The Wear Is Severe, Welding Should Be Repaired.
(3) The Conveying Capacity Should Not Be Overloaded, Otherwise The Material Cannot Be Discharged, Causing The Spiral Shaft To Bend And The Box To Expand.
(4) When The Conveyed Medium Has A High Degree Of Elasticity, Attention Should Be Paid To Whether The Expansion And Contraction Of The Box Body Are Free And There Are No Jamming Areas. If There Are Any, They Should Be Resolved Promptly.
(5) When The Noise Emitted By The Conveyor During Operation Is Harsh, It Should Be Covered For Inspection And Troubleshooting.
Specifications | Main Technical Performance | Driving Device | Driving Device | Weight （kg） | ||||
Diameter | Length （m） | Production (Cement) T/h | Rotational Speed Min | Reducer | Motor | |||
Model | Speed Ratio | Model | Power （kw） | |||||
GX200 | -10 | Nine | Sixty | JZQ250 | Twenty-three Point Three Four | Y90S-4 | One Point One | Seven Hundred And Twenty-six |
GX200 | -20 | Nine | Sixty | JZQ250 | Twenty-three Point Three Four | Y90L-4 | One Point Five | One Thousand Two Hundred And Fifty-eight |
GX250 | -10 | Fifteen Point Six | Sixty | JZQ250 | Twenty-three Point Three Four | Y100L2-4 | Two Point Two | Nine Hundred And Sixty |
GX250 | -20 | Fifteen Point Six | Sixty | JZQ250 | Twenty-three Point Three Four | Y100L1-4 | Three | One Thousand Seven Hundred And Fifty |
GX300 | -10 | Twenty-one Point Two | Sixty | JZQ350 | Twenty-three Point Three Four | Y100L2-4 | Three | One Thousand Three Hundred And Seventy-three |
GX300 | -20 | Twenty-one Point Two | Sixty | JZQ350 | Twenty-three Point Three Four | Y112M-4 | Four | Two Thousand Three Hundred And Forty-six |
GX400 | -10 | Fifty-one | Sixty | JZQ400 | Twenty-three Point Three Four | Y132S-4 | Five Point Five | One Thousand Nine Hundred And Eleven |
GX400 | -20 | Fifty-one | Sixty | JZQ500 | Twenty-three Point Three Four | Y160M-4 | Eleven | Two Thousand And Forty-nine |
GX500 | -10 | Eighty-seven Point Five | Sixty | JZQ400 | Twenty-three Point Three Four | Y132M-4 | Seven Point Five | Two Thousand Three Hundred And Eighty-one |
GX500 | -20 | Eighty-seven Point Five | Sixty | JZQ650 | Twenty-three Point Three Four | Y180M-4 | Eighteen Point Five | Five Thousand Three Hundred And Eighty-nine |
GX600 | -10 | One Hundred And Thirty-four Point Two | Forty-five | JZQ750 | Twenty-three Point Three Four | Y180L-4 | Twenty-two | Three Thousand Eight Hundred And Eighty |
GX600 | -10 | One Hundred And Thirty-four Point Two | Forty-five | JZQ850 | Twenty-three Point Three Four | Y250M-4 | Fifty-five | Seven Thousand And Ninety |

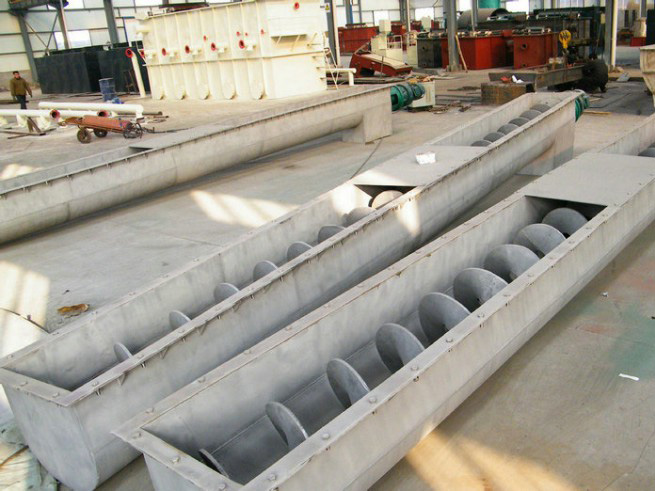

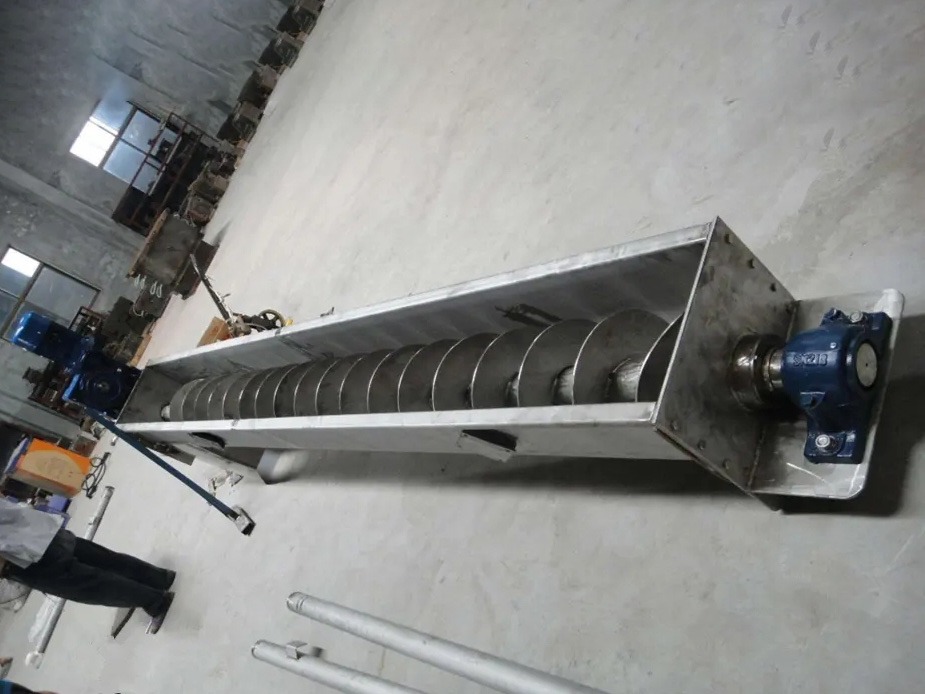

Spiral Machines Are Widely Used In Various Industries, Such As Building Materials, Chemical Industry, Power, Metallurgy, Coal Mine Charcoal, Grain And Other Industries. They Are Suitable For Horizontal Or Inclined Conveying Of Powdery, Granular And Small Block Materials, Such As Coal Mines, Ash, Slag, Cement, Grain, Etc., With Material Temperatures Below 200 ℃. Spiral Machines Are Not Suitable For Conveying Materials That Are Prone To Deterioration, High Viscosity, And Clumping. In Concrete Mixing Plants, The Role Of Screw Conveyors Is Most Prominently Demonstrated.
Spiral Conveyor Is A Widely Used Conveying Equipment In Chemical, Building Materials, Grain And Other Sectors, Mainly Used For Conveying Powdery, Granular And Small Block Materials. It Is Not Suitable For Conveying Materials That Are Prone To Deterioration, Viscosity, And Clumping.
The Environmental Temperature For The Use Of The Screw Conveyor Is -20~50 ℃; The Inclination Angle Of The Conveyor Is β ≤ 20 °; The Conveying Length Is Generally Less Than 40m, And The Longest Is Not More Than 70m.
Compared With Other Conveying Equipment, The 3 Screw Conveyor Has The Advantages Of Simple Structure, Small Cross-sectional Size, Good Sealing Performance, The Ability To Load And Unload Materials At Multiple Points In The Middle, Safe And Convenient Operation, And Low Manufacturing Cost. Its Disadvantages Are Severe Wear And Tear Of Mechanical Parts, Low Conveying Capacity, High Power Consumption, And Easy Breakage Of Materials During Transportation.
